Carbon Capture Patented Device

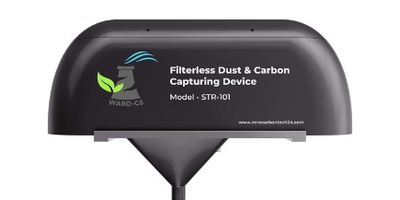

Planet Care Solutions promotes WARO C-6, a Patented product developed by Zero Carbon. WARO-C6 isn’t your average air purifier. It ditches the traditional methods – no filters, no ionization, no UV light, no magnetic fields, and no harmful emissions.

This marvel of engineering harnesses the power of the sun, requiring only 12 volts of  energy which makes it most economical.

A filter-less, AI-powered, carbon & dust capture device with patent-granted technology.

PRODUCT PERFORMANCE CYCLE


1.Device sucks polluted air.

2.Air is decompressed for easier particle separation.

3.Air is channelized into the treatment chamber.

4.High-frequency signals charge the dust & carbon particles.

5.Particles stick to deposition plates .

6.80% captured in phase 1, remaining in other phases.

7.Automatic brush cleans plates& collects dust.

8.Clean and fresh air comes out

Our Core Value Proposition

1. Zero filters.
2. Zero consumables.
3. Zero water waste.
4. 3 lakh litres of fresh air per hour
5. 99.8% purification efficiency
6. Low power consumption -starting 12V
7. Self-cleaning + fully automatic
8. Real-time IoT & AI monitoring
9. Works 24×7

TECHNICAL SPECIFICATIONS

Air Capacity: 200 CFM i.e., cubic feet per minute

Efficiency: 99.8%

Weight: 12 kg

Dimensions: 1000×250×450 mm

Material: ABS Polymer, IP55

Monitoring: Real-time AI + GPS

Mounting: Streetlight / pole

Captures: PM1.0, PM2.5, smoke, dust

Power: 230V input / 12V DC operation

CIRCULAR ECONOMY: WHAT HAPPENS TO CAPTURED DUST

Captured material is reused, not discarded.
Recycled as:
✔ Used in paver blocks
✔ Used in dyes
✔ Contributes to circular economy

 Red mud, also known as bauxite residue, is a highly alkaline (pH 10-13) waste generated during alumina production via the Bayer process.

Globally, approximately 170 million tonnes of red mud are produced annually, with India contributing around 5 million tonnes per year.

Odisha, being a hub of alumina production, faces significant environmental risks due to red mud storage, including soil and water contamination .

Red mud contains valuable metals, including iron oxide (56.7%), rare earth elements (REEs), alumina, and titanium. The estimated value locked in global red mud reserves is approximately $30 billion, with Odisha's high-iron red mud representing an untapped resource .

Project Objectives

· Primary Objective:

Demonstrate the technical and economic feasibility of extracting iron oxide from red mud using a chemical-free process.

· Secondary Objectives:

· Achieve 95% extraction efficiency for iron oxide.

· Process 500 tons per day of red mud.

· Ensure zero waste discharge through residue utilization.

· Contribute to environmental sustainability by reducing red mud stockpiles.

Project Overview

· Feedstock: 10,000 tpd red mud (bauxite residue) sourced from alumina refineries

· Target Outputs:

· Primary: 5,000 tpdiron oxide (Fe₂O₃ ≥99%, battery-grade)

· Secondary: REE concentrate (Ce, La, Nd, Sc, Y), titanium dioxide, aluminum oxide

· Technology Basis: Patented hydrometallurgical process enabling selective metal extraction at low temperatures (70–90°C) with reagent recycling .

· Scale Justification: Aligns with global red mud generation of 177 million tons annually (2023) .

Green Steel Production from Red Mud

Green steel production focuses on *replacing carbon reductants with hydrogen*, eliminating CO₂ emissions. Two primary methods have emerged:

*Hydrogen Plasma Reduction*

- *Process: Red mud is melted in an **electric arc furnace (EAF)* using a hydrogen-argon plasma (10% H₂). Iron oxides are reduced to liquid iron within *10 minutes, achieving*~70% metallization**.

Outputs:

- *High-purity iron* (directly usable for steelmaking).

- *Neutralized slag* (pH drops from 10.5 to 7.5), forming a glassy material suitable for construction.

- Advantages:

- No preprocessing (e.g., pelletizing) required.

- Heavy metals are immobilized in the slag, preventing leaching.

- *CO₂ savings: Using green hydrogen could save **1.5 billion tonnes of CO₂* if applied to all stockpiled red mud.

Thermite Production from Red Mud

Thermite requires a mixture of *metallic aluminum* and *iron oxide* to drive the exothermic reaction:

$$ \ce{2Al + Fe2O3 -> 2Fe + Al2O3 + \text{heat}} $$

Red mud's composition makes it a candidate, but challenges exist:

*Feasibility and Challenges*

- *Alumina Recovery: Alkaline leaching of reduced red mud pellets extracts **62–87% alumina*, which could be processed into aluminum powder.

- *Iron Oxide Enrichment: Magnetic separation post-reduction yields iron concentrate (33–52% Fe*), but purity is insufficient for thermite.

- *Energy Intensity*: Producing aluminum powder from recovered alumina requires electrolysis, offsetting thermite's economic benefits.

*Alternative Approach*

- *Direct Use of Reduced Red Mud*: Partially reduced iron (e.g., sponge iron) could be mixed with recovered aluminum powder. However, impurities (e.g., TiO₂, SiO₂) may inhibit the reaction.
